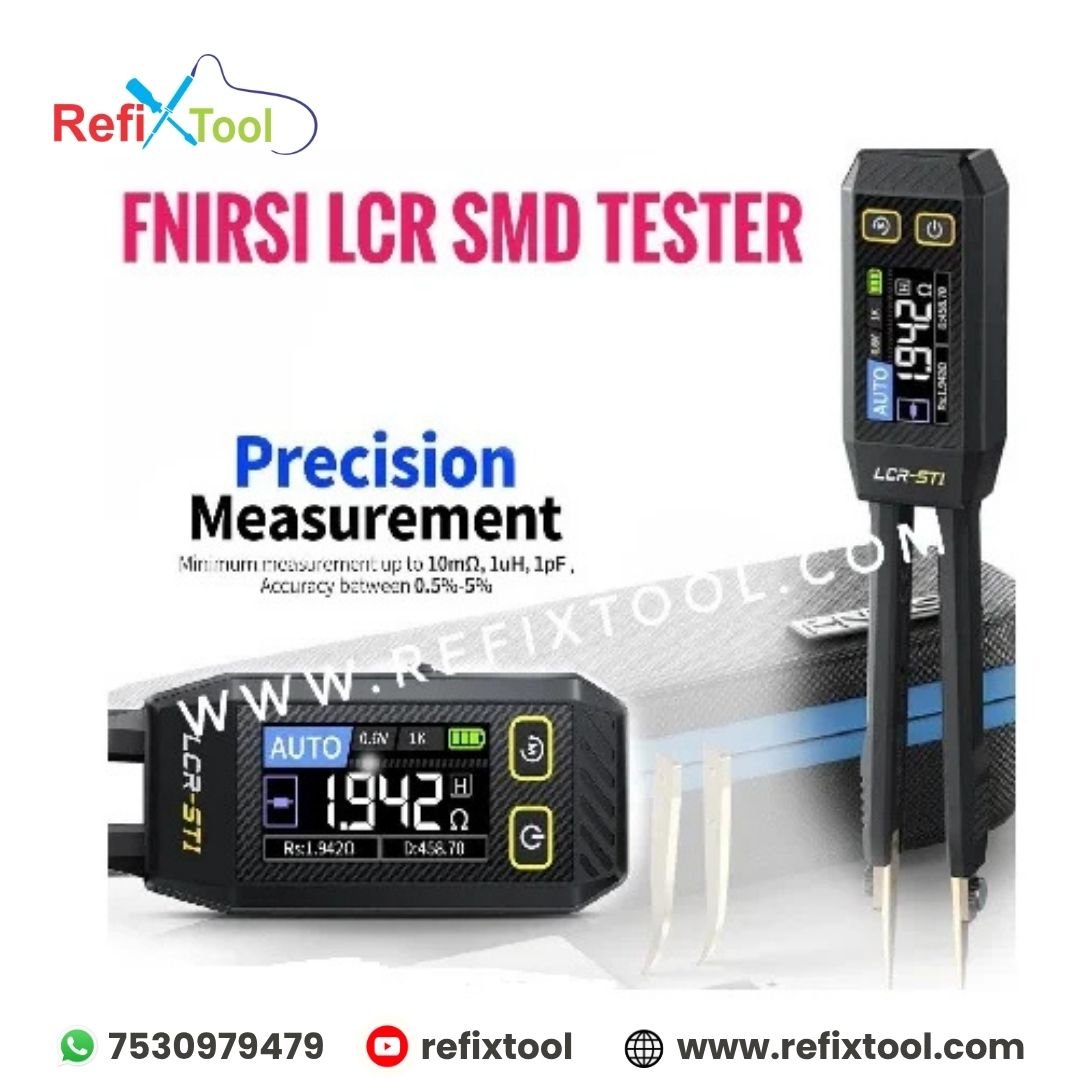

FNIRSI LCR-ST1 is a compact, portable, and multifunctional digital tweezer tester designed for fast and accurate measurement of resistance, capacitance, inductance, diodes, and ESR values. With auto component recognition, it displays both primary and secondary parameters clearly on a 1.14" HD color screen, making testing quick and efficient.
This smart tweezer meter supports 3 test frequencies (100Hz, 1kHz, 10kHz) and 2 test voltages (0.3V RMS, 0.6V RMS), offering a wide measurement range. Equipped with pointed and hook tweezer heads, it can handle both small SMD components and larger devices with ease.
The LCR-ST1 also provides data storage, history record, and PC export via Excel, making it ideal for professional labs, repair engineers, and electronics hobbyists. Powered by a 250mAh rechargeable lithium battery with Type-C charging, it is lightweight, efficient, and highly portable.
Key Features:
Wide Measurement Range:
Resistance: 10mΩ–10MΩ
Capacitance: 1pF–22mF
Inductance: 1µH–10H
Diode On Voltage: 0.7V
Multiple Functions: ESR, D, Q, R, Z, X parameter measurement.
Auto Component Recognition with dual parameter display.
3 Test Frequencies: 100Hz, 1kHz, 10kHz.
2 Test Voltages: 0.3V RMS, 0.6V RMS.
1.14" HD Color Display for clear readings.
Replaceable Tweezer Heads (pointed & hook) for versatile testing.
Data Storage & Export via PC (Excel supported).
Auto Shutdown & Data Hold functions.
Lightweight & Portable: only 41g with included storage bag.
Specifications:
Brand/Model: FNIRSI LCR-ST1
Power Supply: 250mAh Rechargeable Lithium Battery
Charging Interface: USB Type-C (5V/1A)
Display: 1.14-inch HD Color Screen
Language Options: English, Chinese
Dimensions: 28 × 19 × 150 mm
Weight: 41g

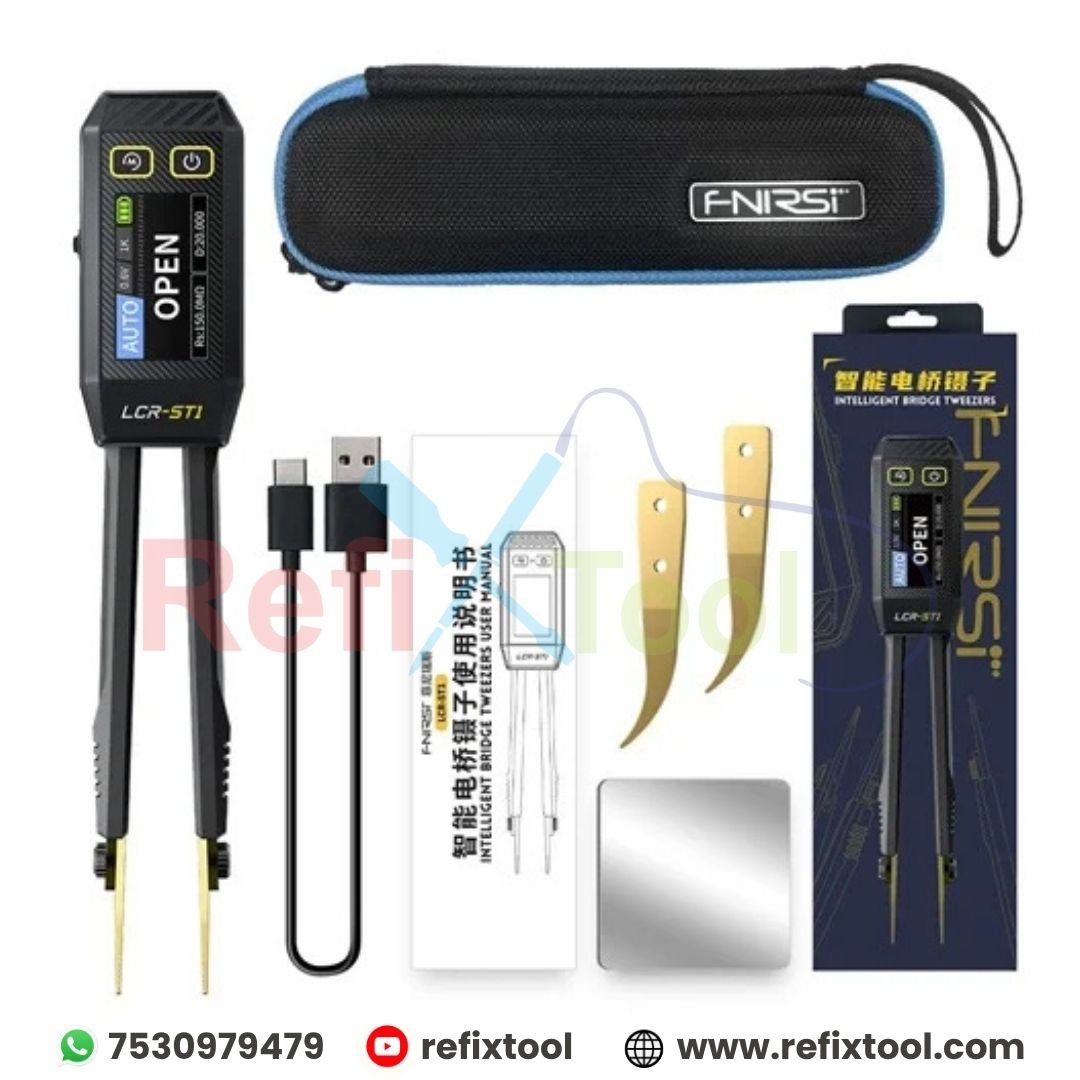

Package Includes:
1 × FNIRSI LCR-ST1 Tweezer Multimeter
2 × Replaceable Tweezer Heads (Pointed & Hook)
1 × Type-C Charging Cable
1 × Storage Bag
1 × User Manual
Watch Product Review on Youtube-
https://youtube.com/shorts/vcmtGRBu81Q?si=9VACYX6Cd2-DPSRc
