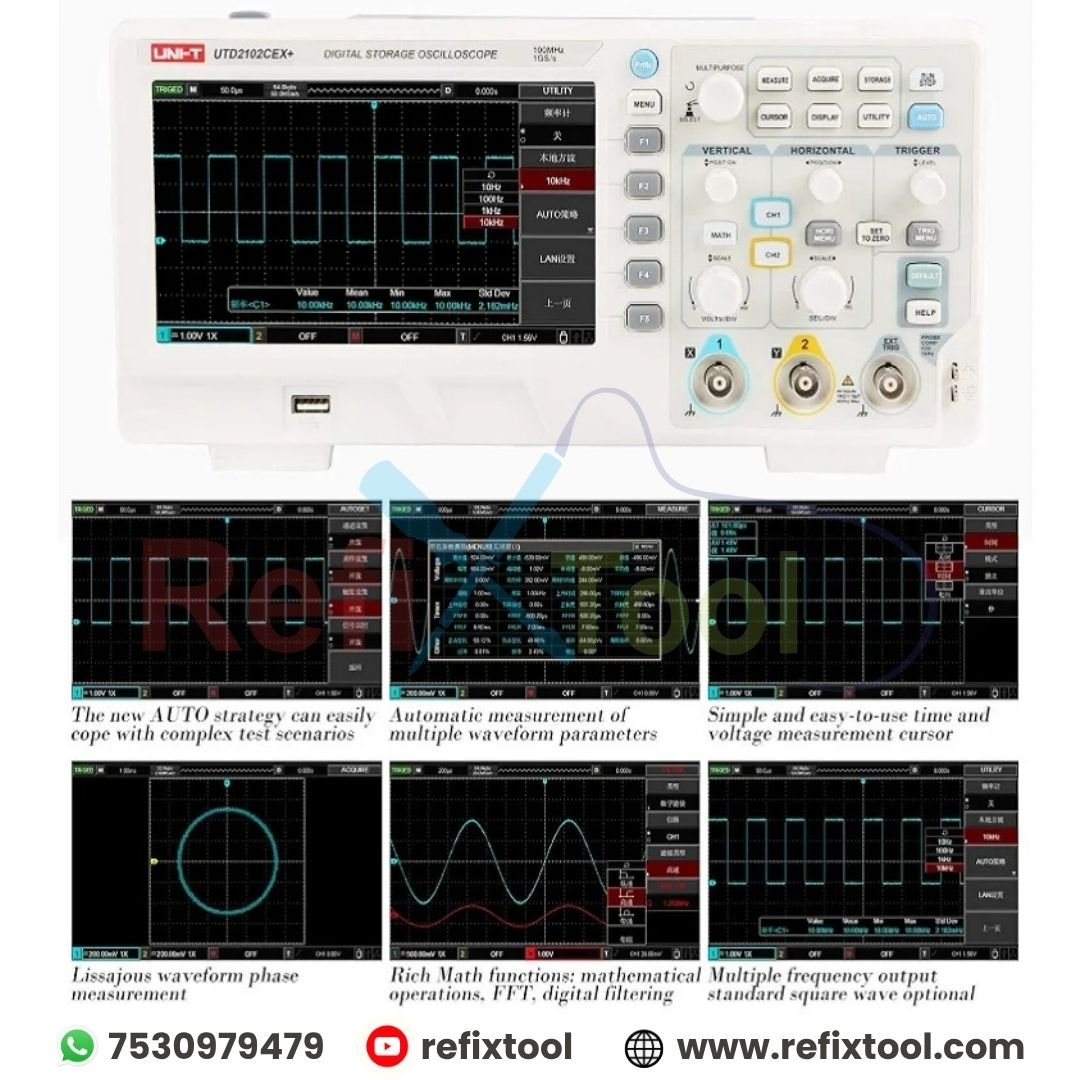

UNI-T UTD2102CEX+ is a dual-channel, 100MHz digital storage oscilloscope designed for accurate signal analysis in research, education, and electronics testing. With a 1GS/s real-time sampling rate, 64kpts memory depth, and ≥5000 wfms/s waveform acquisition rate, it offers precise waveform capture even for random and low-probability events.
The high-definition LCD screen, multi-language interface (9 languages), and optimized panel design improve usability, making it ideal for both professionals and educational labs.
Key Features:
Bandwidth: 100MHz, Dual Channels
Sample Rate: 1GS/s Real-Time
Vertical Range: 1mV/div ~ 20V/div
Display Range: 8div × 16div, optimized Autoset strategy
Waveform Capture Rate: ≥5000 wfms/s
Trigger Modes: Edge, Pulse, Alternate, Video
Measurement: 34 automatic waveform parameters + math functions
Output: Standard square wave (10Hz, 100Hz, 1kHz, 10kHz)
Connectivity: USB OTG for data transfer, PC control & waveform storage
Languages: Supports 9 languages
Specifications:
Model: UTD2102CEX+
Channels: 2
Bandwidth: 100MHz
Sample Rate: 1GS/s
Memory Depth: 64kpts
Rise Time: ≤3.5ns
Timebase Range: 2ns/div ~ 50s/div
Waveform Storage: Setup, Wave, Bitmap
Interface: USB OTG

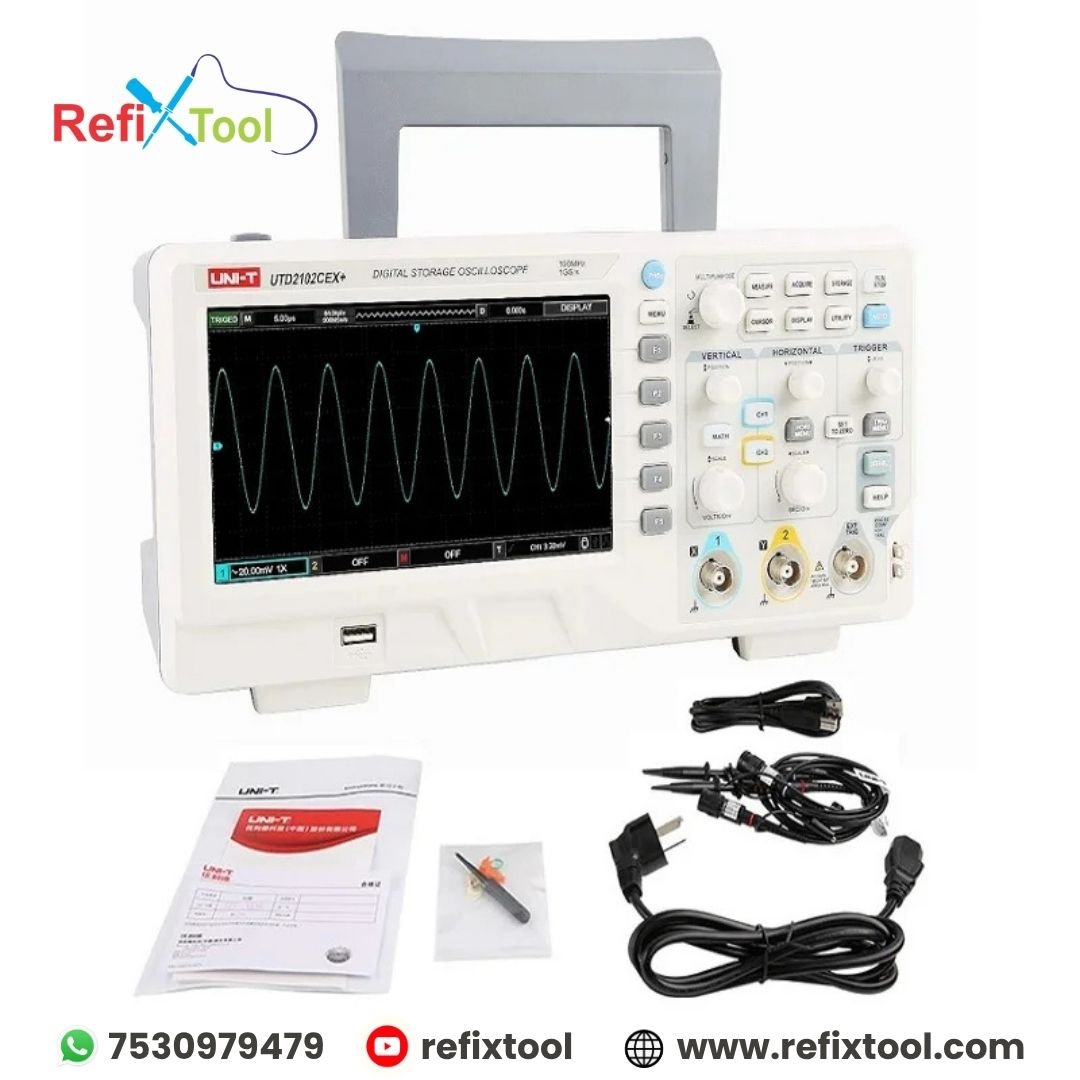

Package Includes:
1 × UNI-T UTD2102CEX+ 100MHz 2CH Digital Storage Oscilloscope
2 × Oscilloscope Probes (UT-P04, 100MHz/6MHz, 10X: 600V PK, 1X: 200V PK)
1 × USB A-B Cable
