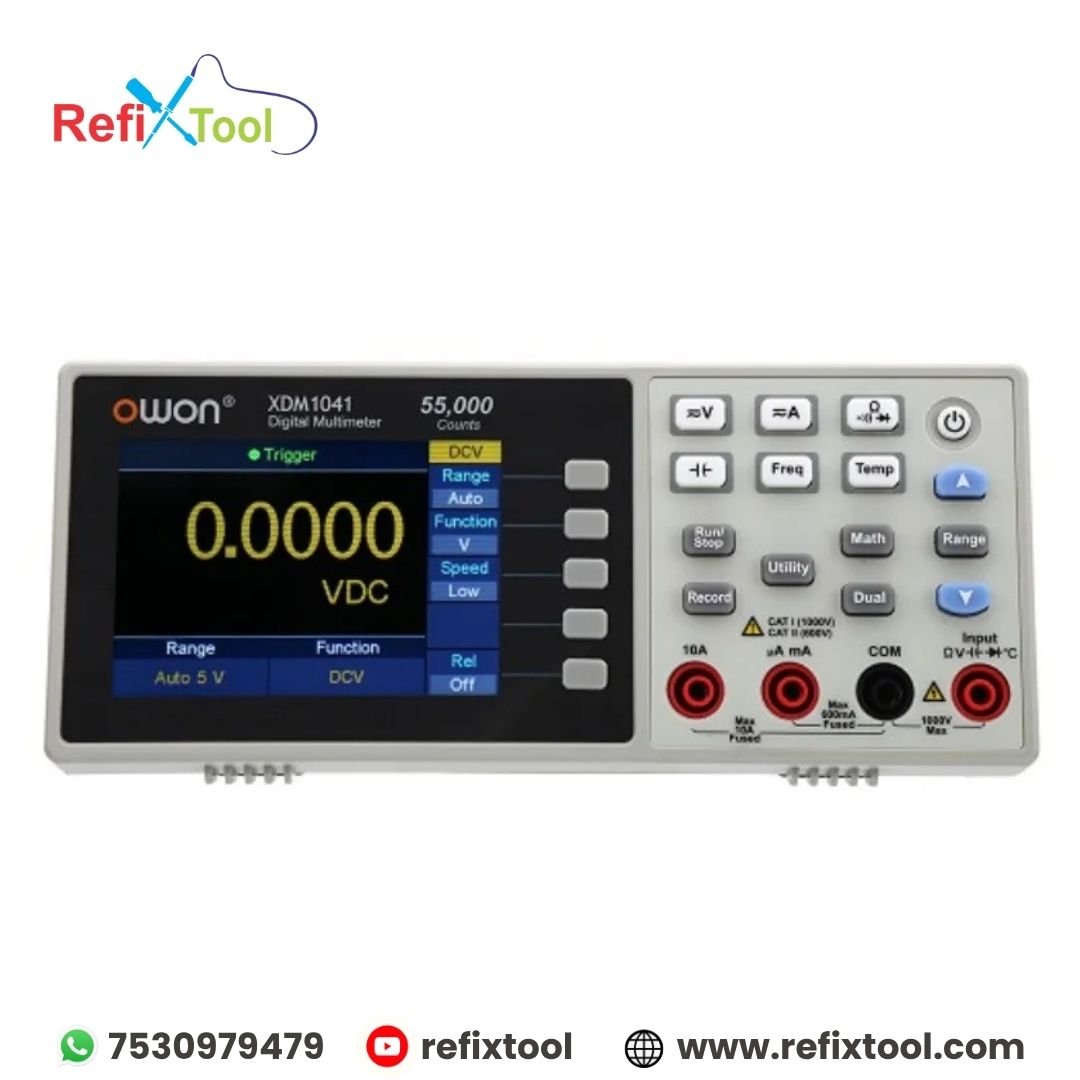

Owon Xdm1041-5 Digit True RMS Digital Bench Top Multimeter is a high-precision 5-digit digital multimeter designed for laboratories, factories, research, and professional electrical applications. With True RMS accuracy, a maximum display of 55,000 counts, and 65 readings per second, it delivers fast, stable, and highly reliable measurements.
Equipped with a 3.7-inch high-resolution TFT LCD screen, it ensures clear and accurate readings of AC/DC voltage, current, resistance, capacitance, frequency, diode, continuity, and temperature. Its data logging function stores up to 1000 measurement points, which can be easily transferred via USB interface with SCPI command support, making data management seamless.
This compact, battery-powered mini benchtop multimeter combines versatility with ease of use, offering adjustable time intervals, auto storage, and an intuitive interface—perfect for engineers, radio enthusiasts, and home labs.
Key Features:
High Precision: 5-digit True RMS accuracy with 55,000 counts.
Fast Measurements: Up to 65 readings per second.
Data Logging: Store 1000 points; adjustable record duration (15ms–9999s).
USB Connectivity: SCPI support for data transfer and remote control.
Large Display: 3.7” TFT LCD, 480×320 resolution.
Wide Measurement Range:
DC Voltage: up to 1000V (±0.05% accuracy)
AC Voltage: up to 750V
DC Current: up to 10A
AC Current: up to 10A
Resistance: up to 50MΩ
Frequency: 10Hz–60MHz
Capacitance: 50nF–50mF
Temperature: K-Type/PT100 support
Additional Functions: Diode test, continuity with adjustable threshold.
Stable Power: AC 90–240V input, 15W consumption.
Package Includes:
1 × OWON XDM1041 Digital Multimeter

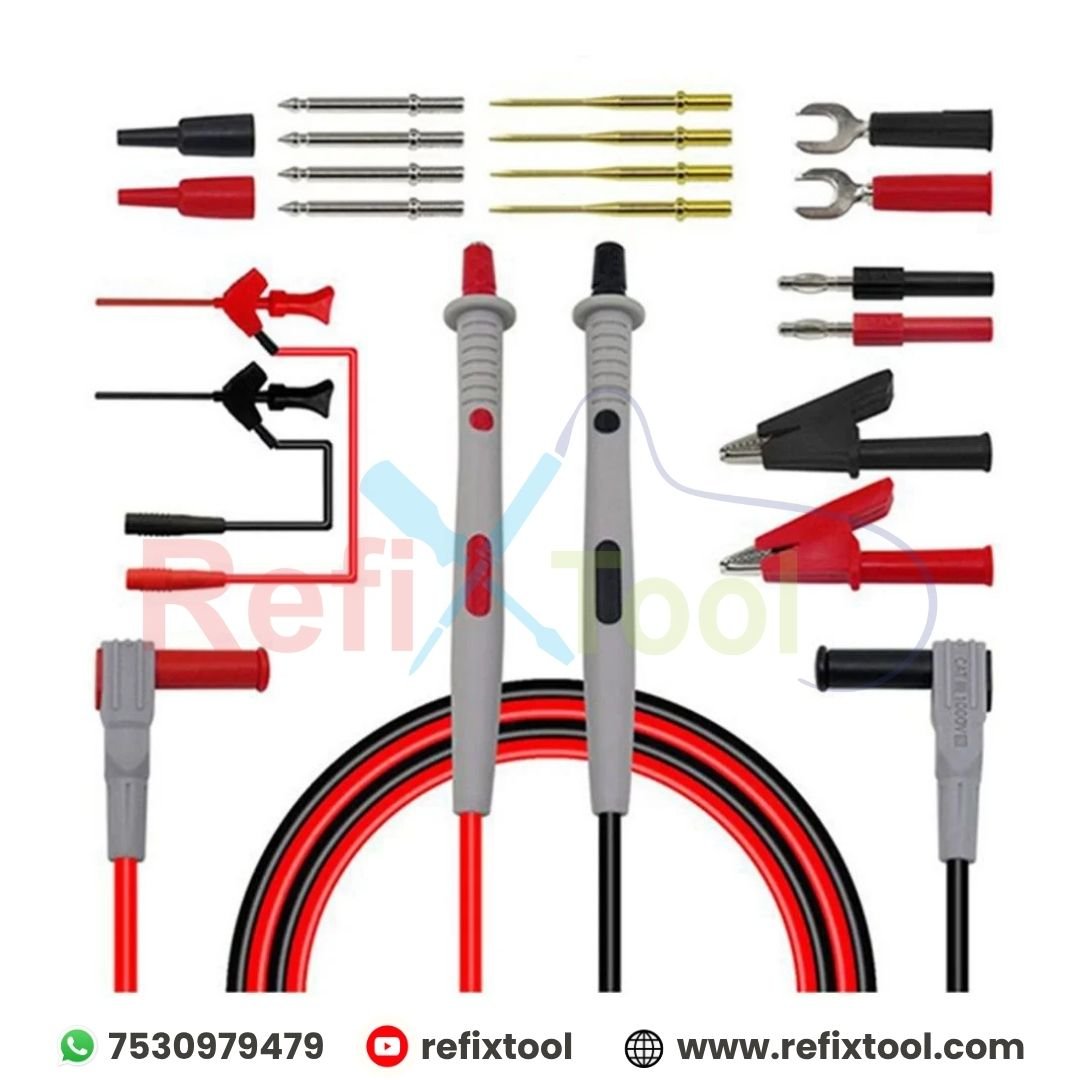

1 × Test Leads
1 × USB Cable
1 × Power Cord
1 × User Manual
