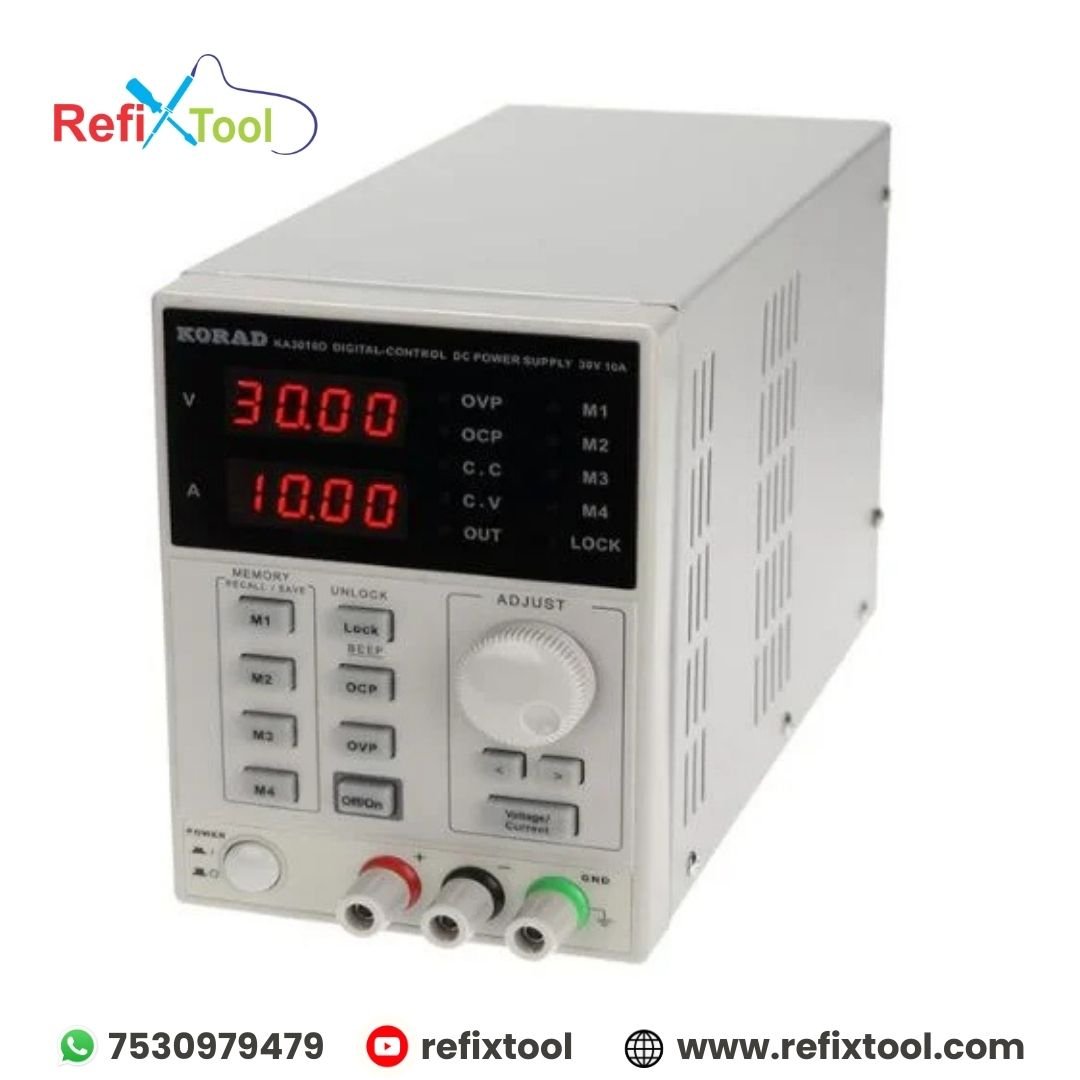

Korad DC Power Supply KA 3010D Adjustable DC 30V 10A is a high-precision linear regulated DC power supply designed for electronics labs, R&D, and testing applications. With an adjustable output of 0–30V and 0–10A (300W), it delivers stable, low-noise performance ideal for sensitive electronic work.
Equipped with a 4-digit digital display, this benchtop power supply provides accurate real-time monitoring of voltage and current. Its programmable memory presets allow you to save and recall frequently used settings, while the panel lock function prevents accidental changes.
The intelligent temperature-controlled fan ensures efficient cooling with minimal noise, and built-in over-voltage and over-current protection safeguards both the power supply and connected devices.
Key Features:
Output Range: 0–30V / 0–10A (300W)
Linear regulated design with low ripple & noise
4-digit LED display for accurate readings
Constant Voltage (CV) & Constant Current (CC) modes
4 programmable memory presets
Intelligent fan cooling with low noise
Over-voltage & over-current protection
Compact and reliable design for lab, college, and production use
Specifications:

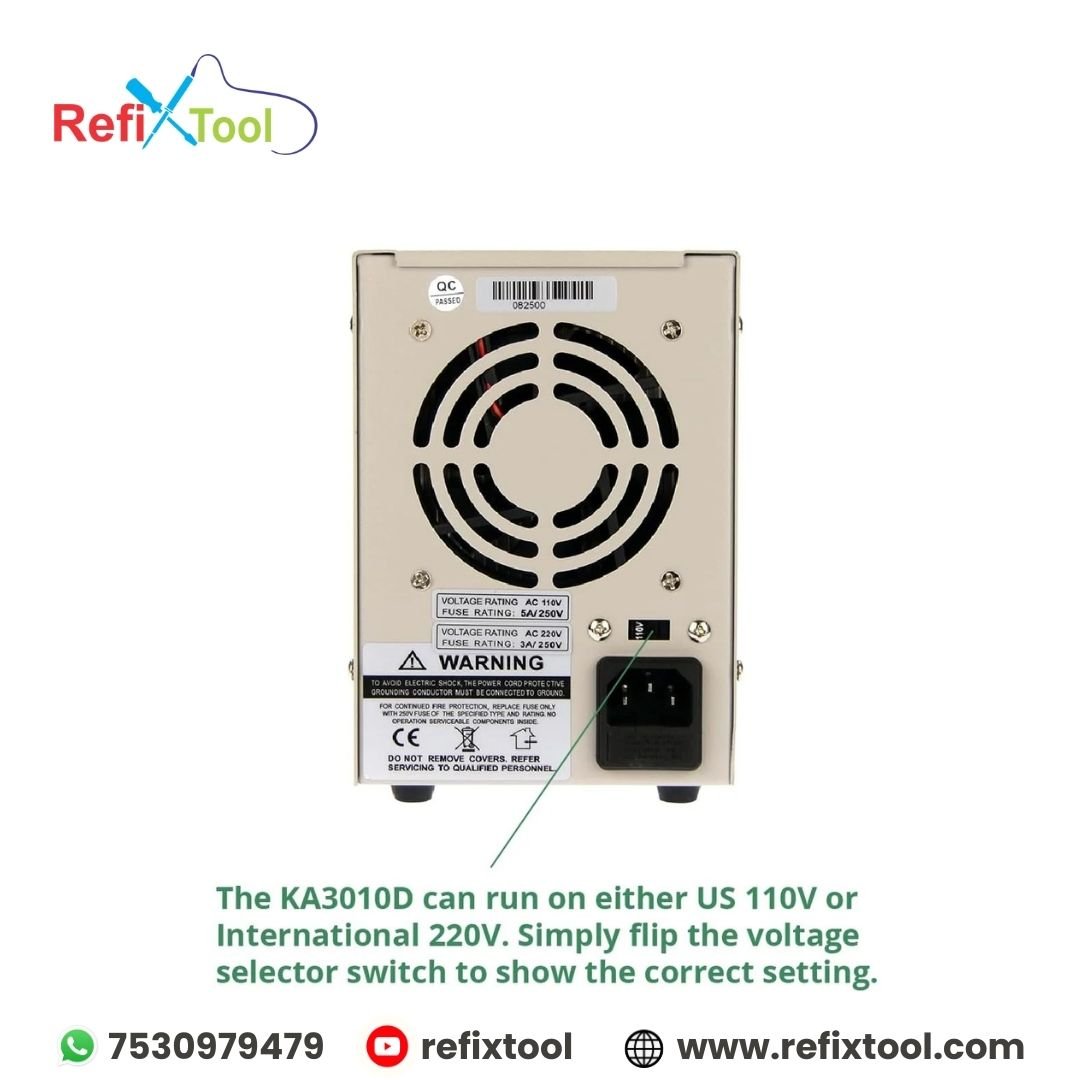

Input Voltage: 110V ±10% / switchable to 220V ±10%
Frequency: 50–60Hz
Operating Temperature: 0–40°C
Dimensions: 110 × 156 × 310 mm
Weight: 7.5 kg (16.5 lbs)
Package Includes:
1 x Korad KA3010D Power Supply
1 x Power Cable
1 x Test Leads
1 x User Manual
