Korad 3005d 30V-5A Programmable DC Power Supply is a professional-grade programmable DC regulated power supply designed for engineers, technicians, and hobbyists who need precise, stable, and reliable power. With a voltage range of 0–30V and a current range of 0–5A, this power supply delivers up to 150W of clean, low-noise output—ideal for development, testing, and educational applications.
Key Features:
Adjustable Output (0–30V / 0–5A) – Fine-tune voltage and current for maximum control during testing and repair.
Programmable Operation – Store and recall up to four user-defined settings, ideal for repetitive tasks.
High-Precision Readings – Voltage resolution of 10mV and current resolution of 1mA with a maximum current reading resolution of 0.1mA.
Constant Voltage & Current Modes – Easily switch between CV and CC operation for different use cases.
Comprehensive Protection – Over-voltage, over-current, short-circuit, and reverse-polarity protection ensure device safety.

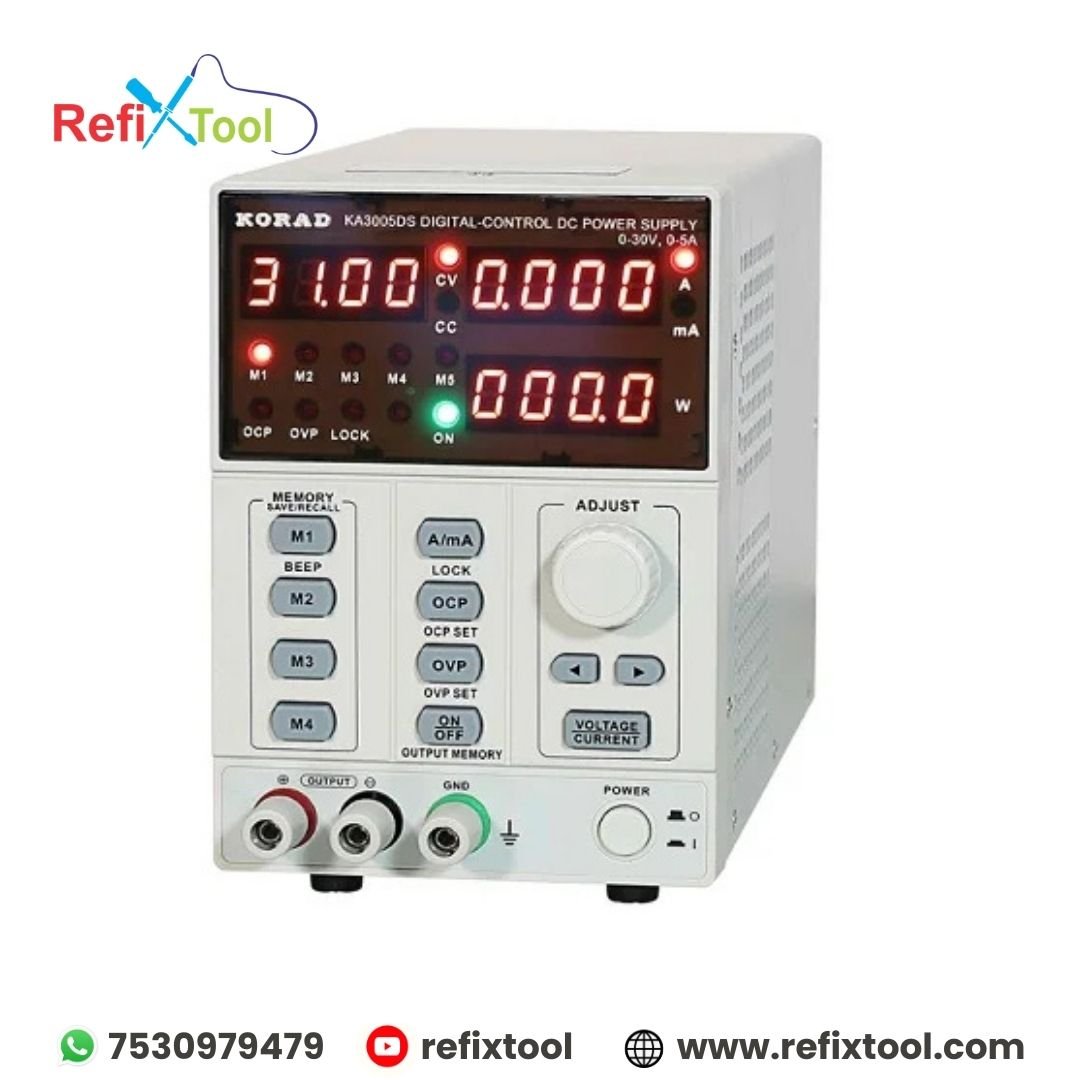

Digital Display – Real-time monitoring of voltage, current, and power for accurate and reliable results.

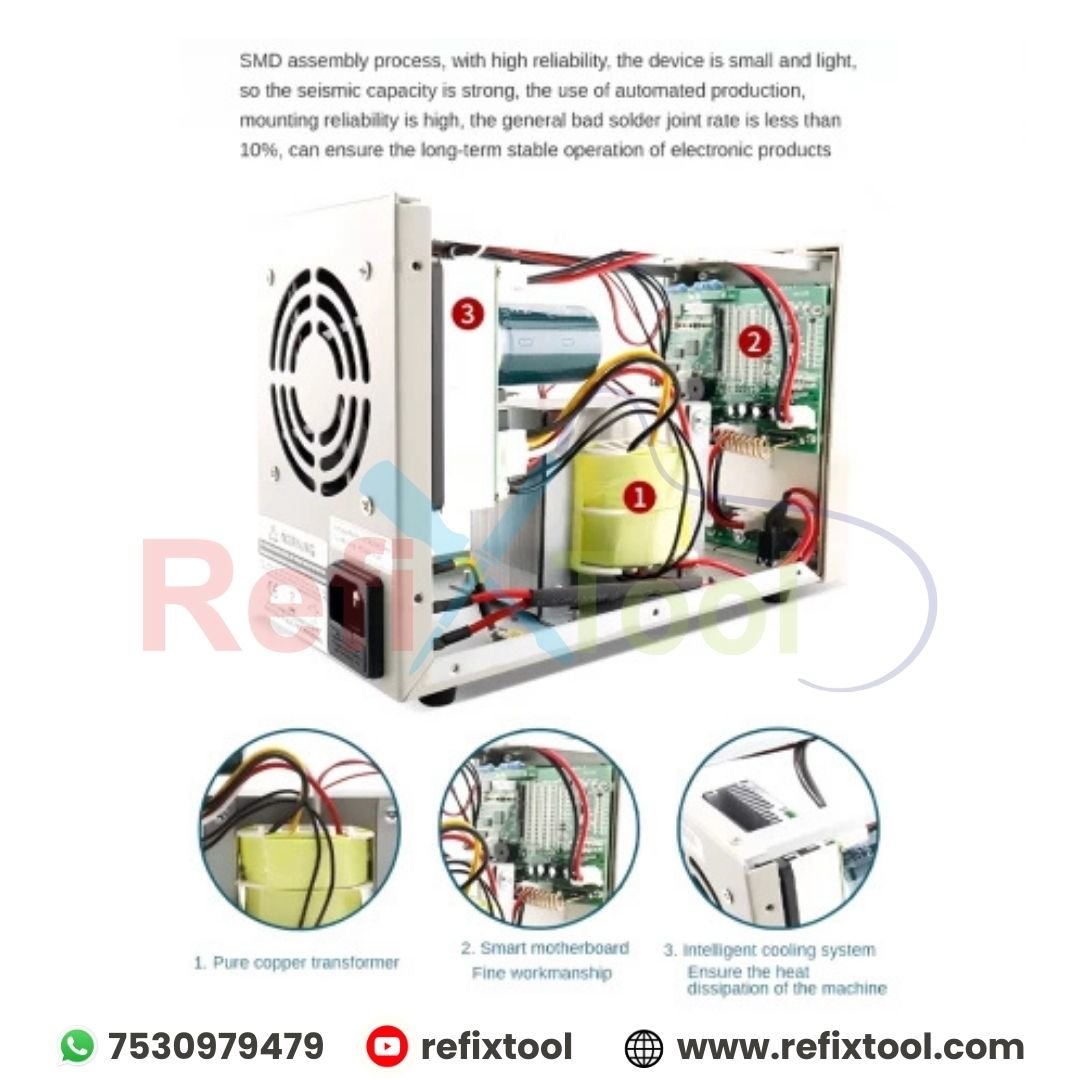

Temperature-Controlled Cooling – Smart fan control minimizes noise and extends power supply life.

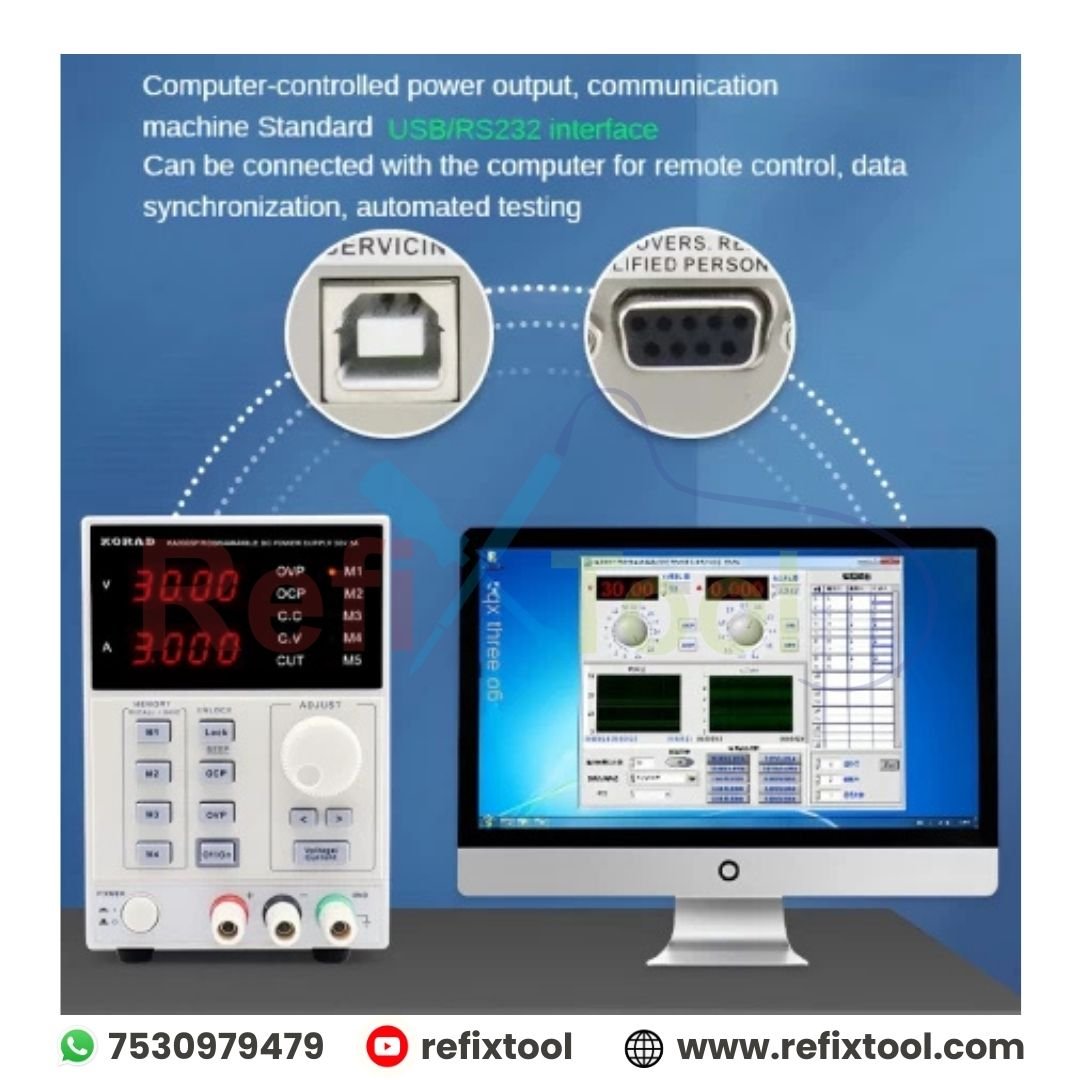

Remote Control (KA3005PS) – USB/RS232 interface allows PC connectivity for automation and remote programming.
Software Calibration & Lock Function – Maintain calibration and prevent accidental parameter changes.
Specifications:
Voltage Range: 0–30V
Current Range: 0–5A
Load Regulation: Voltage ≤0.01% + 2mV, Current ≤0.1% + 10mA
Line Regulation: Voltage ≤0.01% + 3mV, Current ≤0.1% + 3mA
Resolution: Voltage 10mV, Current 1mA
Accuracy: Voltage ≤0.5% + 20mV, Current ≤0.5% + 10mA
Ripple & Noise: ≤2mVrms (Voltage / Current)
Reaction Time: ≤100ms (Rise/Fall)
Dimensions: 100 × 156 × 260 mm
Weight: 4.32 kg
Package Includes:
1 × Korad KA3005DS / KA3005PS Power Supply
1 × Power Cord
