ET120MC2 Dual Channel Digital Oscilloscope Multimeter is a compact, high-performance diagnostic tool designed for electronics testing, troubleshooting, and waveform analysis. With dual-channel support, a 120MHz bandwidth (single channel), and up to 500MSa/s sampling rate, it delivers precise and reliable measurement results.
Key Features:

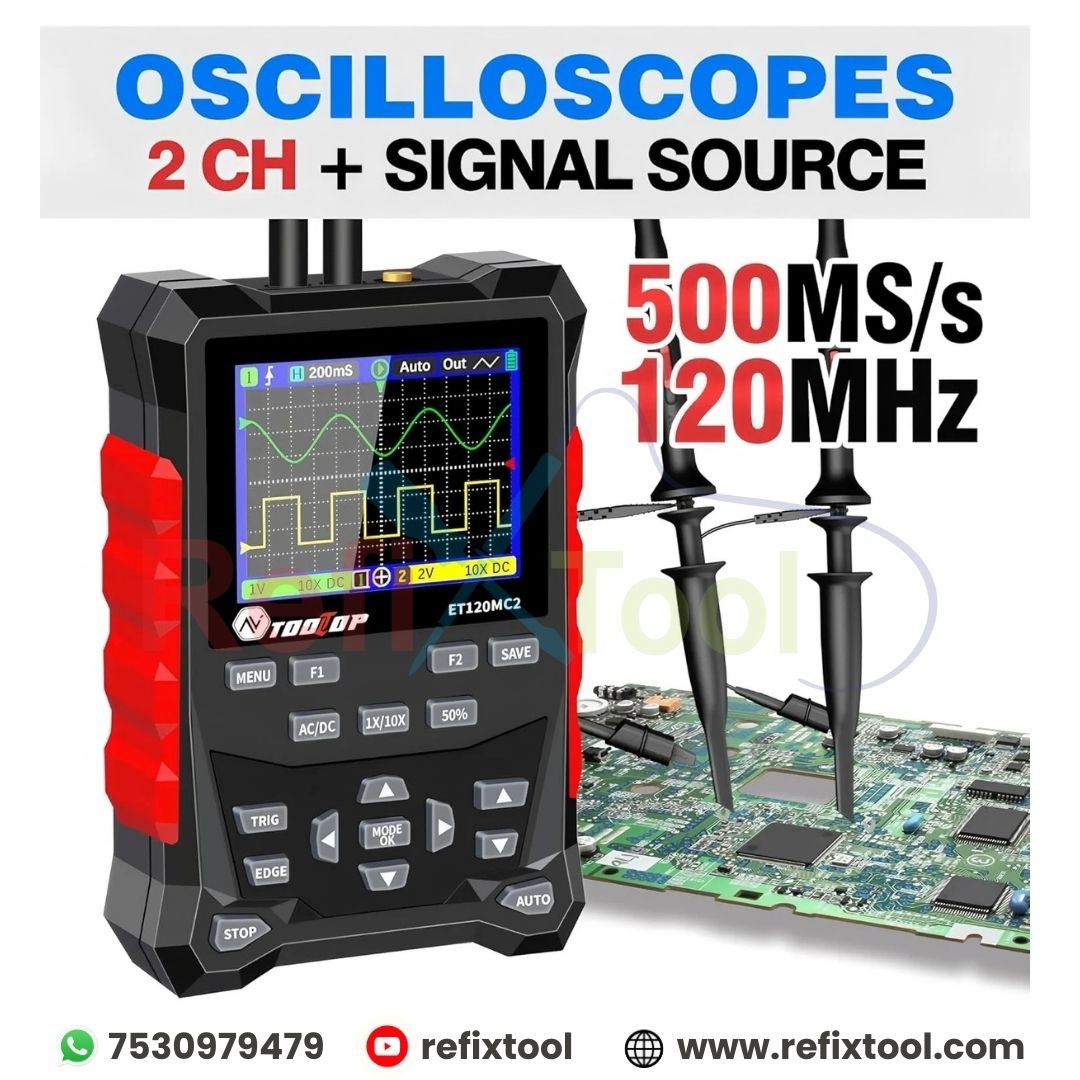

Dual Channel Digital Oscilloscope – 120MHz (single channel), 40MHz (dual channel)
High Sampling Rate – 500MSa/s for accurate signal capture
Multiple Waveform Modes – Auto, Normal, and Single trigger

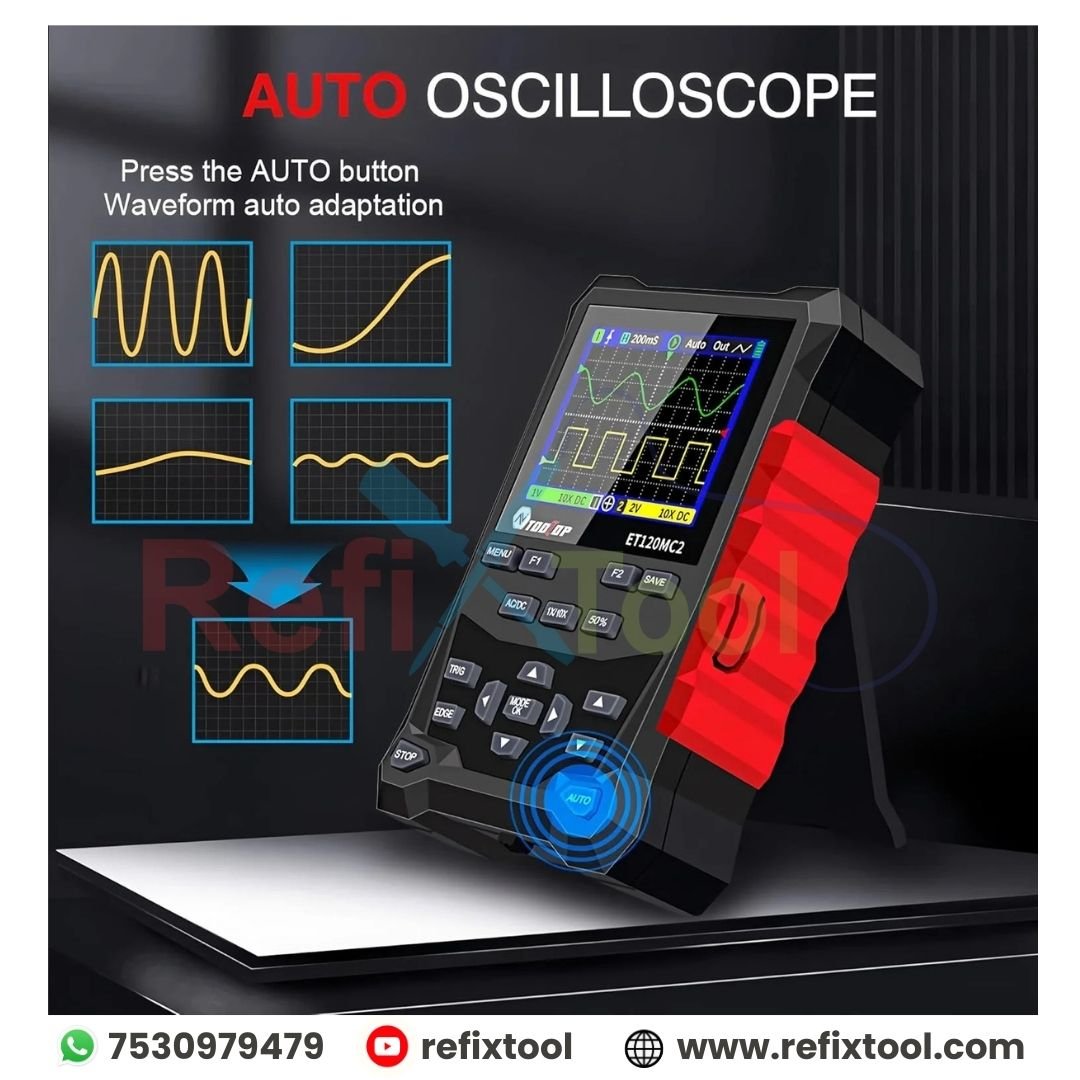

One-Click Auto Setup – Instantly adjust waveform to screen
Signal Generator – Outputs sine, triangle, and square waves (10Hz–3MHz)
Large Storage Capacity – Save up to 2500 waveforms with thumbnail browsing
Compact & Lightweight – Only 187g with 2.4-inch TFT display
Built-in Rechargeable Lithium Battery – ~4 hours of standby time
Durable Design – Silicone protective cover, anti-slip and drop-resistant
Specifications:
Bandwidth: 120MHz (single channel), 40MHz (dual channel)
Channels: 2
Max Test Voltage: 80Vpp (1X), 800Vpp (10X)
Vertical Sensitivity: 50mV–100V
Time Base Range: 6ns–50s
Trigger Modes: Auto / Normal / Single

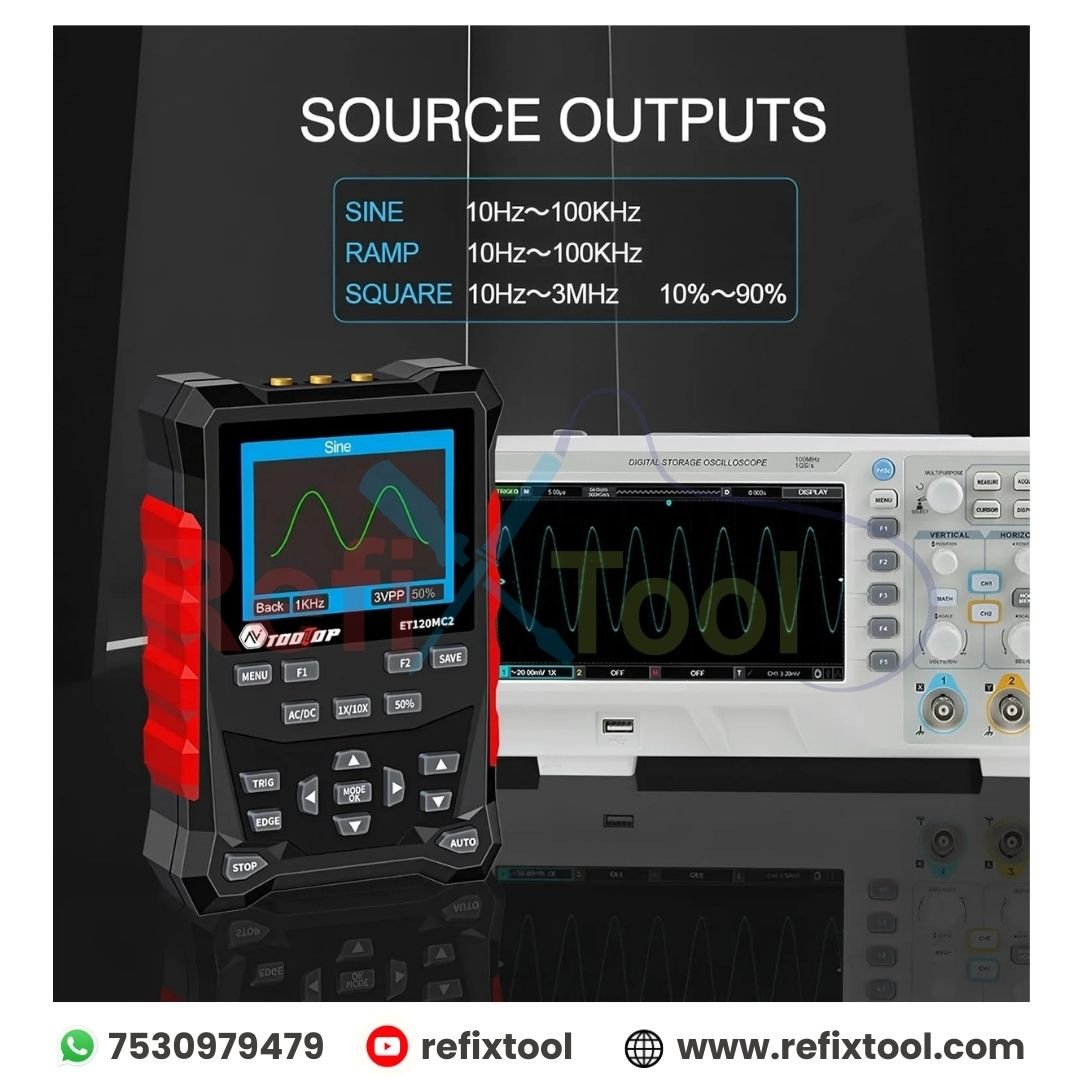

Signal Output: Sine/Triangle (10Hz–100kHz), Square (10Hz–3MHz, 10–90% duty cycle)
Display: 2.4” TFT, 320x240 resolution
Battery Life: ~4 hours, rechargeable via DC5V/1A–2A
Size/Weight: 124 x 80 x 35mm / ~187g
Packing Include
1 x ET120MC2 Dual Channel Digital Oscilloscope Multimeter
